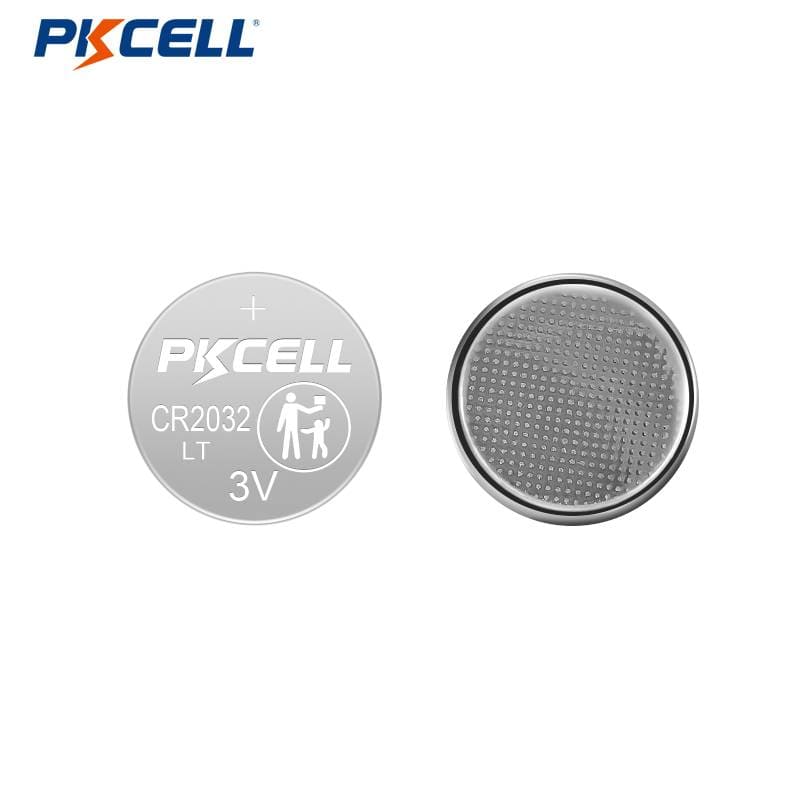

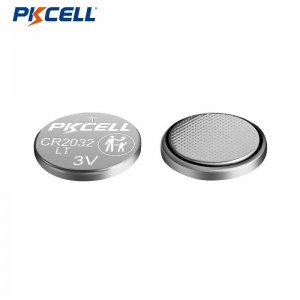

CR2032LT 3V 220mAh Lithium Button Cell Battery Wholesale Not Retail

Short Description:

CR2032 batteries are also known as: 5004LC, BR2032, CR2032, DL2032, ECR2032, KCR2032, and KECR2032. These batteries are all CR2032 battery equivalents. We carry the best brands of PKCELL CR2032 batteries.

CR2032 button coin cell battery provides excellent performance and their extensive shelf-life makes them ideal for use in a variety of devices: Watch, clock, toys, calculator, RTC (Real Time Clock), memory back-Up power source, keyless entry remotes and remote starters.

Free Download:

CR2032 3M Stacking Test Repoet

CR2032 1.2M Drop Test Report

CR2032 MSDS

CR2032 UN38.3


Product Detail

FAQ

Product Tags

Brand: PKCELL
Model: CR2032LT
Capacity: 220mAh
Chemical Composition: Lithium
Application: Animal husbandry ear tags, cold chain transportation
Free promotional accessories: pen, flash light, T-shirt etc.
Oversea Warehouse:Canada,UniteStates,Russian,Australia

Advantages:
1) Environmental friendly,Light weight

2) High density of energy
3) Low self-discharge
4) Low internal resistance
5) No memory effect
6) Free of mercury
7) Safety assurance : No fire, No explosion, No leakage

Disply and storage:
1.Batteries shall be stored in well-ventilateddry and cool conditions

2.Battery cartons should not be piledup in severa layers,or should not exceed a specified height
3.Batteries should not be exposed to direct sun ray for a long time or placed in areas where they get wet by rain.
4.Do not mix unpacked batteries so as to avoid mechanical damage and/or short circuit among each other

Warnings and Cautions:
1.Do not short circuited, recharge, heat, disassemble nor dispose in fire

2.Do not force-discharge.
3.Do not make the anode and the cathode reversed
4.Do not solder directly

LT series–Low temperature battery
Model Discharge Standard  capacity(mAh) (MPQ) Operating Temperature Range(Low) Operating Temperature (High))
CR1632LT 30KΩ(0.1mA) 120 4000 -55℃ +60℃
CR2032LT 15KΩ(0.2mA) 220 4000 -55℃  +60℃
CR2430LT 15KΩ(0.2mA) 270 2000 -55℃ +60℃
CR2450LT 7.5KΩ(0.4mA) 600 1400 -55℃ +60℃
CR2477LT 4.7KΩ(0.6mA) 1000 1000 -55℃ +60℃
