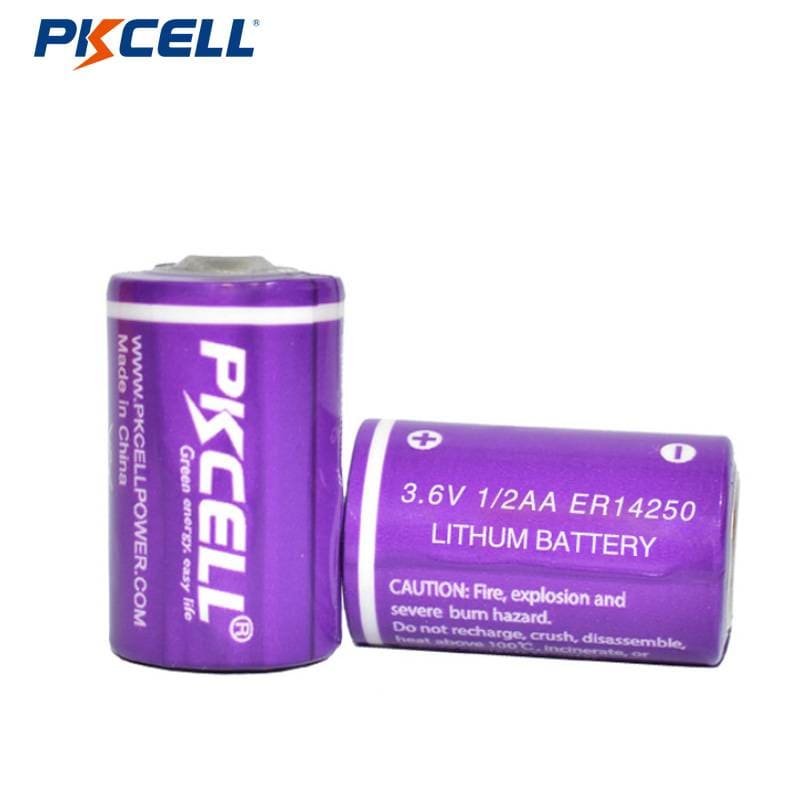

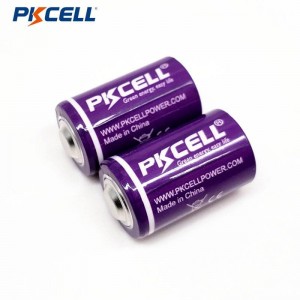

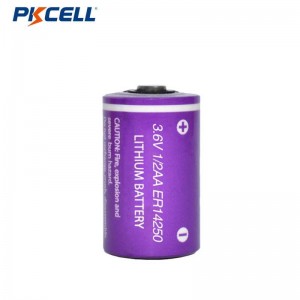

Baterai PKCELL ER14250 1/2AA 3.6V 1200mAh LI-SOCL2
Aplikasi khas:
Sistem weker lan keamanan, GPS, sistem pangukuran, serep memori, sistem pelacakan lan komunikasi GSM, Aerospace, Pertahanan, Militer, Manajemen Daya, Piranti Portabel, Elektronik Konsumen, Jam wektu nyata, Sistem nelusuri, Pangukuran Utilitas, lsp
Spesifikasi:
Jeneng model:ER14250
Ukuran: CC, Φ14.5mm * 25.2mm (Max)
Kapasitas Nominal: 1200mAh (1.2Ah)
Tegangan nominal: 3.6V
Tegangan sirkuit mbukak: 3.66V
Tegangan: 2.0 V
Kisaran suhu operasi: -55 ° C nganti 85 ° C
Max terus-terusan Discharge saiki: 50mA
Max Pulse Discharge saiki: 100mA
Standar saiki: 0.5mA
Bobot umum: 9.3g
Umur beting khas: 10 taun
Terminasi sing kasedhiya: 1) Terminasi standar 2) Tab Solder 3) Pin Axial 4) utawa syarat khusus (kabel, konektor, lsp)
Fitur:
1) Kapadhetan Energi Dhuwur, tegangan dhuwur, stabil sajrone umur aplikasi
2) Wide sawetara suhu operasi
3) Tingkat self-discharge sing dawa (≤1% saben taun sajrone Panyimpenan)
4) Urip panyimpenan dawa (10 taun ing suhu kamar)
5) Hermetic kaca-kanggo-logam sealing
6) Elektrolit non-flammable
7) Ketemu standar safety IEC86-4
8) Aman kanggo ngekspor MSDS, UN38.3 cert.kasedhiya
Kondisi panyimpenan:
resik, adhem (luwih becik ing ngisor +20 ℃, ora ngluwihi +30 ℃), garing lan berventilasi.
Pènget:
1) Iki minangka baterei sing ora bisa diisi ulang.
2) Bahaya geni, bledosan lan kobong.
3) Aja ngisi daya, short circuit, tresna, mbongkar, panas ndhuwur 100 ℃ incinerate.
4) Aja nggunakake baterei ngluwihi sawetara sedheng diijini.
| Li-SOCl2 (Tipe Energi) | ||||||||||
| Model IEC | Tegangan Nominal (V) | Ukuran (mm) | Kapasitas Nominal (mAh) | Arus Standar (mA) | Arus Discharge Kontinu Maks (mA) | Arus Pelepasan Pulsa Maks (mA) | Tegangan Cut-off (V) | Bobot Kira-kira (g) | Suhu Operasi (°C) | |
| ER10450 | AAA | 3.6 | 10.0×45.0 | 800 | 1.00 | 10 | 20 | 2.00 | 9 | -55~+85 |
| ER14250 | 1/2AA | 3.6 | 14.5×25.0 | 1200 | 0.50 | 50 | 100 | 2.00 | 10 | -55~+85 |
| ER14335 | 2/3AA | 3.6 | 14.5×33.5 | 1650 | 0.70 | 50 | 100 | 2.00 | 13 | -55~+85 |
| ER14505 | AA | 3.6 | 14.5×50.5 | 2400 | 1.00 | 100 | 200 | 2.00 | 19 | -55~+85 |
| ER17335 | 3.6 | 17×33.5 | 2100 | 1.00 | 50 | 200 | 2.00 | 30 | -55~+85 | |
| ER17505 | 3.6 | 17×50.5 | 3400 | 1.00 | 100 | 200 | 2.00 | 32 | -55~+85 | |
| ER18505 | A | 3.6 | 18.5×50.5 | 4000 | 1.00 | 100 | 200 | 2.00 | 32 | -55~+85 |
| ER26500 | C | 3.6 | 26.2×50.5 | 8500 | 2.00 | 200 | 400 | 2.00 | 55 | -55~+85 |
| ER34615 | D | 3.6 | 34.2×61.5 | 19000 | 3.00 | 200 | 400 | 2.00 | 107 | -55~+85 |
| ER9V | 9V | 10.8 | 48,8×17,8×7,5 | 1200 | 1.00 | 50 | 100 | 2.00 | 16 | -55~+85 |
| ER261020 | 3.6 | 26.5×105 | 16000 | 3.00 | 200 | 400 | 2.00 | 100 | -55~+85 | |
| ER341245 | 3.6 | 34×124.5 | 35000 | 5.00 | 400 | 500 | 2.00 | 195 | -55~+85 | |
